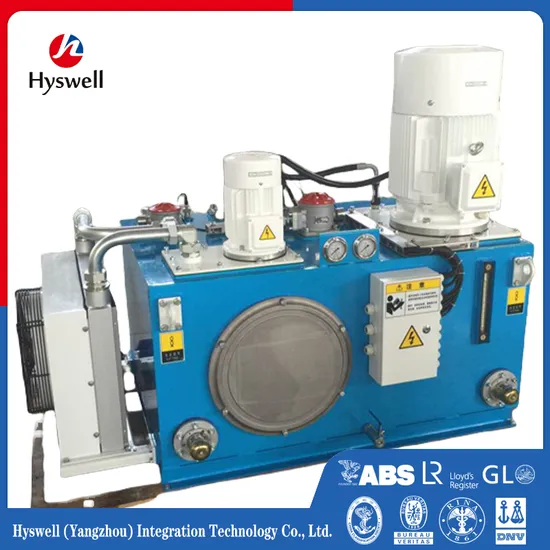

Hyswell Hnsg Series 12V/24V/48V DC Hydraulic Power Pack Unit 220V for Static Compactor

The HNSG series fixed garbage station power unit is a power unit developed by our company to match the horizontal split

Basic Info.

Model NO.	HNSG Series
Specification	Power pack for movable compactor
Trademark	Hyswell
Origin	Yangzhou, Jiangsu
HS Code	86090090
Production Capacity	50000 Unit Per Year

Product Description

The HNSG series fixed garbage station power unit is a power unit developed by our company to match the horizontal split garbage compression equipment. It is mainly used to compact and press loose household garbage, and squeeze out the moisture in it to make the garbage. Garbage does not drip everywhere during transportation, reducing secondary pollution and serving as the hub of the garbage collection and transportation system. Due to the complex composition of household waste, sanitation workers are often harmed by garbage dust and odors during operations, and residents around garbage stations are also greatly affected. By installing spray dust reduction devices, on the one hand, dust pollution is minimized, and on the other hand, effective microorganisms in biological deodorizers are used to inhibit the production of ozone and decompose the resulting odor pollution, achieving harmless treatment of garbage and improving transportation efficiency. The entire system consists of a hydraulic system and an electronic control system. This product synchronizes with advanced European technology to ensure reliable equipment operation and efficient operation; Adopting modular design, the system has advanced performance, neat layout, and smooth and beautiful appearance. The electronic control system adopts PLC, touch screen (optional), and upper computer (optional) control, which can achieve automatic repositioning, locking, and compression of the box, and has full load warning, emergency stop, forced retreat, and safety warning functions.

Hyswell Hnsg Series 12V/24V/48V DC Hydraulic Power Pack Unit 220V for Static Compactor

Project	Basic Parameters
Technical Parameter	HNSG15A	HNSG26C	HNSG40A	HNSG60A	HNSG80A
Theoretical Processing Capacity (m3/h)	172	340	345	560	800
Normal Compressive Force (kN)	270	320	350	470	580
Crushing Compression Force (kN)	320	405	460	700	1100
Compression Chamber Volume (m3)	1.5	2.6	4	6	8
Length of Compression Head Entering The Box (mm)	360	500	800	1200	2400
Feeding Port Size (mm)	1450×1950	1530×1950	2450×1950	3000×1950	4165×1950
Cycle Time Approximately (sec.)	31	27	41	38	50
Motor Power (kW)	11	11	22	2×22	2×45

Yangzhou Hainer Hydraulic Equipment Co., Ltd. was established at the end of 2012 and is a subsidiary of Hyswell (Yangzhou) Integration Technology Co., Ltd. It focuses on the development, production, sales, and service of hydraulic and electrical control systems. Main business of the company: intelligent mobile garbage compression station hydraulic and electrical control system, small fixed garbage compression station hydraulic and electrical control system, medium and large fixed garbage compression station hydraulic and electrical control system; The company has been established for nearly 11 years, and its flagship product, the intelligent mobile garbage compression station hydraulic and electrical control system, has a market share of 30%, ranking first in the industry and supporting multiple well-known enterprises Technical focus: We have been dedicated to the development of hydraulic and electrical control systems for garbage stations, and have obtained 15 patents; The product has formed a series, with strong adaptability to standards, and can quickly meet personalized needs; On the basis of single pump and double pump series products, some additional functions have been innovatively developed: Reliable quality: There are 61 quality control points in the assembly process, 51 inspection points in the whole machine experiment, and 500 action cycle experiments before leaving the factory to ensure the perfect delivery of the product; Abundant production capacity and fast delivery: With a single shift annual production capacity of 3500 sets of systems, the power unit of the mobile garbage compression station adopts semi-automatic assembly line operation, and the single shift production capacity can reach 10 sets. Conventional products can be delivered in 10 days, urgent orders can be delivered in 7 days, and key customers can be shipped at any time; Providing leading control system solutions and software and hardware products for environmental sanitation equipment manufacturers, making their products competitive. "- This is Hainar's mission. Through our leading technology and rich on-site service experience, we bring more advanced and suitable hydraulic and electrical control systems and software and hardware products to Chinese environmental sanitation equipment manufacturing enterprises, continuously creating value for users and enhancing competitiveness.
